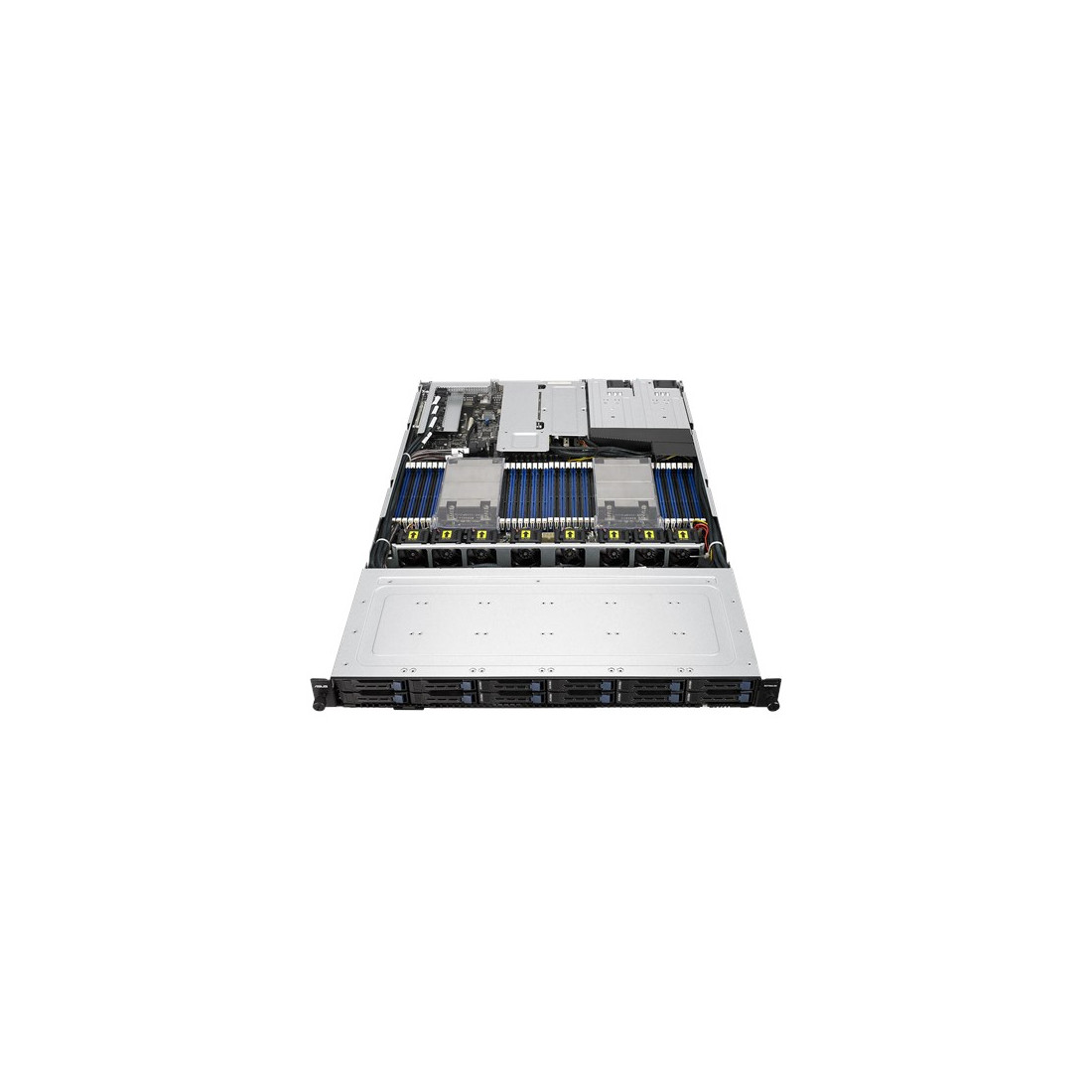

Asus RS700A E9 RS12 4NVME
Barebone
Retail
- CPU: AMD EPYC™ 7000 Series
- Memory: 32 x RDIMM / LRDIMM / LR-DIMM 3DS- DDR4 2666/2400/2133 Max 4096GB LR-DIMM 3DS.
- HDD Bays: 12 x 2.5" Hot-swap 4 x NVMe+ 4 x SATA/SAS / 4 x NVMe+ 4 x SATA/NVMe +4 x SATA/ 2 x M.2 (22110, 2280, 2260, 2242)
- Networking:1 x Dual Port Intel Ethernet Controller i350-AM2 + 1 x Mgmt LAN
- Expansion Slot: 4 x PCI-E x8 / x16 /x16(Gen x8 link) / OCP 2.0 Mezzanine (Gen3 x8 LP, HL / x16 link), FH, HL
- F.A:1+1 Redundant 800W 80 PLUS Platinum Power Supply
- Networking: 1 x Dual Port Intel I350-BT2 Gigabit LAN controller + 1 x Mgmt LAN
- Dimensions: 686mm x 444mm x 44mm
hoja de producto. -
Política de seguridad (Información de seguridad y confianza para el cliente)
-
Política de envío (Información de seguridad y confianza para el cliente)
-
Política de Privacidad (Información de seguridad y confianza para el cliente)
ASUS RS700A-E9 1U high performance AMD EPYC Server with up to industry leading 64 Cores Density, 32 DIMM, 16 Channels DDR4, 3 x PCI-E Gen3 Expansion Slots, Dual 4 x M.2, Exterior Visible Q Code and ASUS Control Center
- Brand-new AMD EPYC™ platform design to incredible server performance. With up to 32 cores per CPU and up to 128 threads in a single 1U server, RS700A-E9-RS12 packs incredible power in minimal space. 32 DIMM slots provide best-in-class memory capacity and bandwidth
- 3 + 1 Expansion Slots with one full-height PCIe 3.0 x 16 slot (x16 mode), one low-profile PCIe 3.0 x16 slot (x8 mode), one low-profile PCIe 3.0 x 8 slot (x8 mode), and one OCP Mezzanine 2.0 slot (x16 mode) for OCP LAN cards for wide range of storage and networking applications.
- User-friendly and Intuitive Design featuring two M.2 slots that accommodate 22110-size SSDs for additional storage options and visible Q-code from the outside to make diagnosing issues easier and more convenient. Tool-less rack rail kit also included for easy server installation and removal, and a tool-less, hot-swappable fan makes for faster and simpler maintenance.
- Energy-efficient Design for better ROI by eliminating power-sharing board for reduced power consumption and operation costs.
- ASUS Control Center for a complete, centralized server management solution with comprehensive control over an entire IT infrastructure to reduce IT operation costs.
Specifications
- Processor / System Bus
AMD EPYC™ 7000 Series
- Generation
E9
- Memory
Total Slots : 32 (8-channel per CPU, 16 DIMM per CPU)
Capacity : Maximum up to 4096GB LR-DIMM 3DS
Memory Type :
DDR4 2666/2400 /2133 RDIMM
DDR4 2666/2400 /2133 LRDIMM
DDR4 2666/2400 /2133 LR-DIMM 3DS
Memory Size :
32GB, 16GB, 8GB RDIMM
64GB, 32GB LRDIMM
128GB LR-DIMM 3DS
* Refer to support page for more information - Expansion Slots
1 x PCI-E x16 (Gen3 x16 link), FH, HL (Optional for NVME4-OCuLink Card)
1 x PCI-E x16 (Gen3 x8 link), LP
1 x PCI-E x8 (Gen3 x8 link), LP (Default for NVME2-OCuLink Card)
1 x OCP Mezzanine 2.0 (Gen3 x16 link) - Storage
SATA Controller :
8 x SATA3 6Gb/s ports
2 x M.2 connector (SATA 6Gb/s & PCI-E Gen3 x4 link)
SAS Controller :
ASUS PIKE II 3008 8-port SAS HBA card(Optional)
ASUS PIKE II 3108 8-port SAS HW RAID card(Optional)
12G SAS Support - Drive Bays
12 x 2.5" hot-swap drive bays
- (4 x NVMe+ 4 x SATA/SAS/NVMe + 4 x SATA/SAS)
2 x M.2 (22110, 2280, 2260, 2242)
*SAS support via PIKE - Networking
1 x Dual Port Intel Ethernet Controller i350-AM2 + 1 x Mgmt LAN
- Graphic
Aspeed AST2500 with 64MB VRAM
- Rear I/O Ports
2 x USB 3.0 ports
1 x VGA port
2 x RJ-45 GbE LAN ports
1 x RJ-45 Mgmt LAN port - Switch/LED
Rear Switch/LED:
1 x Power switch
1 x Q-Code/Port 80 LED
1 x Location LED
1 x Message LED
1 x Storage device LED
Front Switch/LED:
1 x Power switch/LED
1 x Location LED
1 x Message LED
1 x Storage device LED
LAN 1-2 LED - OS Support
Windows® Server 2016
Windows® Server 2012 R2
RedHat® Enterprise Linux
SuSE® Linux Enterprise Server
CentOS
Ubuntu
VMware
Citrix XenServer
Please find the latest OS support from http://www.asus.com/ - Management Solution
ASUS Control Center (Classic)
On-Board ASMB9-iKVM for KVM-over-IP - Regulatory Compliance
BSMI, CE, C-Tick, FCC(Class A)
- Dimensions
686mm x 444mm x 44mm
27" x 17.48" x 1.73" - Form Factor
1U
- Weight
Net Weight : 12.15KG
Gross Weight : 15.75KG - Power Supply
1+1 Redundant 800W 80 PLUS Platinum Power Supply
Rating: 100-127/200-240Vac,9.4A/4.72A ,50/60Hz Class I
(240Vdc, 4.6A Only for China) - Environment
Operation temperature: 10℃ ~ 35℃
Non operation temperature: -40℃ ~ 60℃
Non operation humidity: 20% ~ 90% (Non condensing)
